pvc layflat hose, layflat hose, layflat irrigation hose
PVC Layflat Hose Features:
Light in weight, good flexibility
Corrosion and aging resistant
Nontoxic and odourless
Burst pressure is 3 times than working pressure
Easy to handle and storage
Customized length areavailable

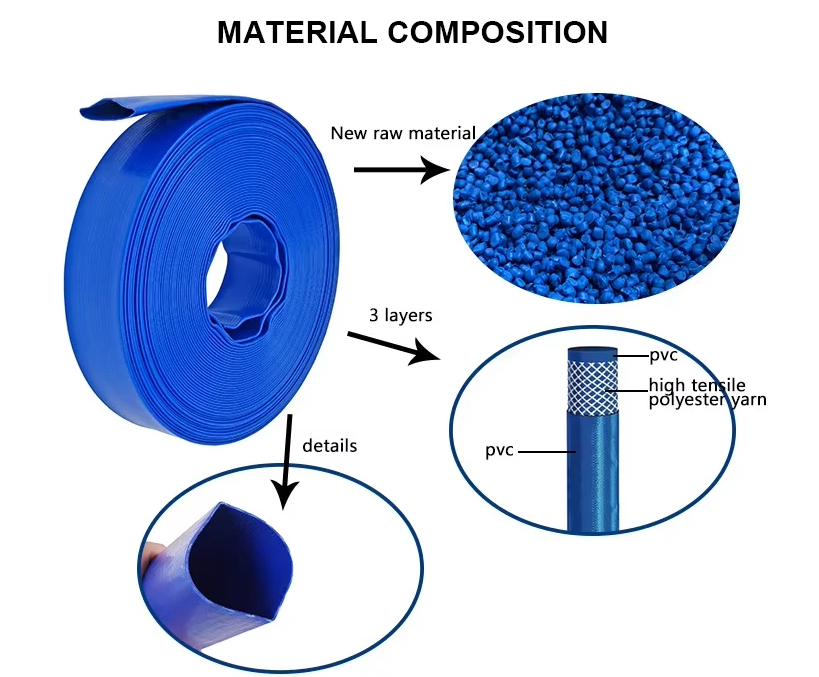

PVC Layflat Hose is commonly referred to as lay flat hose, water discharge hose, delivery hose, pump hose and flat hose. While blue layflat hose is perfect for use with water, light chemicals and other fluids in industry, agriculture, irrigation, mining and construction.Reinforced with a continuous high tensile strength polyester fiber circularly woven, it is one of the most durable lay flat hoses in the industry.
PVC Layflat Hose [Light Duty]
| Part No. | Size | mm | Psi | Bar | Psi | Bar | Length m/ roll |
| JINZE20 | 3"/4" | 20 | 30-45 | 2-3 | 90-135 | 6-9 | 100 |
| JINZE25 | 1" | 25 | 30-45 | 2-3 | 90-135 | 6-9 | 100 |
| JINZE32 | 1-1/4" | 32 | 30-45 | 2-3 | 90-135 | 6-9 | 100 |
| JINZE38 | 1-1/2" | 38 | 30-45 | 2-3 | 90-135 | 6-9 | 100 |
| JINZE51 | 2" | 51 | 30-45 | 2-3 | 90-135 | 6-9 | 100 |
| JINZE64 | 2-1/2" | 64 | 30-45 | 2-3 | 90-135 | 6-9 | 100 |
| JINZE76 | 3" | 76 | 30-45 | 2-3 | 90-135 | 6-9 | 100 |
| JINZE102 | 4" | 102 | 30-45 | 2-3 | 90-135 | 6-9 | 100 |
| JINZE127 | 5" | 127 | 30-45 | 2-3 | 90-135 | 6-9 | 100 |
JINZE153 | 6" | 153 | 30-45 | 2-3 | 90-135 | 6-9 | 100 |
| JINZE203 | 8" | 203 | 30-45 | 2-3 | 90-135 | 6-9 | 100 |
Application:
PVC lay flat discharge hose is designed for light and heavy duty applications. While such blue flat hose mostly serves in agricultural for water transfer and irrigation. Other appliactions include water pump, pool & spa, construction, mine and marine.
Mobile irrigation
Suitable for sprinkler and drip irrigation systems, can be quickly laid in the field without complicated installation.
Temporary water delivery
Used for water diversion, drainage or water delivery from water sources (rivers, reservoirs) to farmland, especially suitable for seasonal irrigation needs.
Water-saving and efficient
Flat design reduces residual water in the pipe, and can accurately control the water volume with sprinkler equipment.
Emergency drainage
Used for urban waterlogging, basement or construction site water drainage, quickly unfold and connect the water pump.
Forest/field firefighting
Light and easy to carry, can be laid over long distances to transport water sources, and adapt to complex terrain.
Temporary firefighting system
As an extension pipe of fire hydrants or water tanks, supplement fixed firefighting facilities.
Temporary water supply on construction sites
Provide construction water for construction sites and mining sites.
Sewage treatment
Transport mud or wastewater, corrosion-resistant and easy to clean.
Explore our range of high-quality pvc layflat hose ,pvc coated tarpaulin and finished pvc tarpaulin!Need help choosing the perfect tarpaulin for your project? Contact Us.
